Pre-wired Models
E2V-X2/X4
E2V-X5/X8
E2V-X10/X15
*1 NO Models: Operation indicator (yellow)(flashing) Setting indicator (yellow)(ON) NC Models: Operaiton indicator (yellow)(ON)
Connector Models
E2V-X4[]-M1

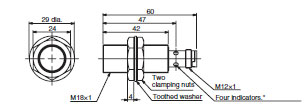

E2V-X8[]-M1

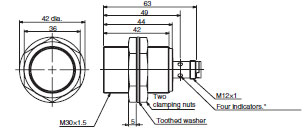

E2V-X15[]-M1
* Setting indicator (ON) Operation indicator (flashing)

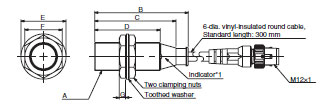

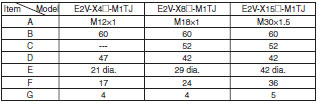

Pre-wired Connector Models
*1 NO Models: Operation indicator (yellow) (flashing) Setting indicator (yellow) (ON) NC Models: Operation indicator (yellow) (ON)
Mounting Hole Dimensions
