(Unit: mm)
Inverter MX2-series V2 type
3G3MX2-AB001-V2
3G3MX2-AB002-V2
3G3MX2-AB004-V2
3G3MX2-A2001-V2
3G3MX2-A2002-V2
3G3MX2-A2004-V2
3G3MX2-A2007-V2
3G3MX2-AB007-V2
3G3MX2-AB015-V2
3G3MX2-AB022-V2
3G3MX2-A2015-V2
3G3MX2-A2022-V2
3G3MX2-A4004-V2
3G3MX2-A4007-V2
3G3MX2-A4015-V2
3G3MX2-A4022-V2
3G3MX2-A4030-V2
3G3MX2-A2037-V2
3G3MX2-A4040-V2
3G3MX2-A2055-V2
3G3MX2-A2075-V2
3G3MX2-A4055-V2
3G3MX2-A4075-V2
3G3MX2-A2110-V2
3G3MX2-A4110-V2
3G3MX2-A4150-V2
3G3MX2-A2150-V2
MX2 시리즈 EtherCAT 통신 유니트 3G3AX-MX2-ECT
External Dimensions
* 1. EtherCAT 통신 유니트를 설치한 경우의 전체 깊이 사이즈는 인버터 본체의 D사이즈에 34mm를 가산해 주십시오.
(인버터 본체의 D사이즈는 용량에 따라 다릅니다. 소형 인버터 유저매뉴얼 (SBCE-506)을 참조하십시오.
옵션

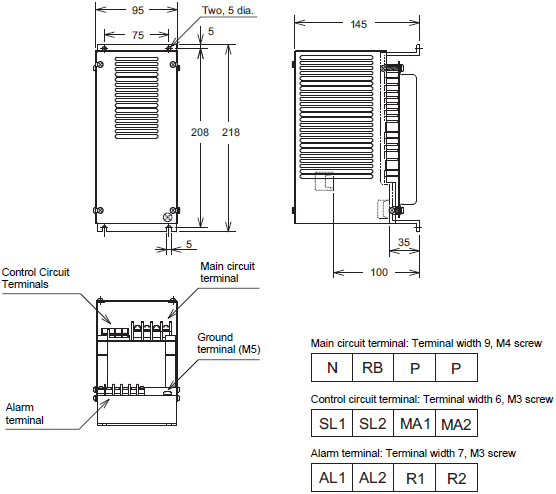

회생 제동 유니트(3G3AX-RBU□□)
3G3AX-RBU23
3G3AX-RBU24
3G3AX-RBU42
3G3AX-RBU43
제동 저항기 (3G3AX-RBA/RBB/RBC[][][][])
3G3AX-RBA[][][][]
3G3AX-RBB[][][][]
Please click image to enlarge (open in a new window).
3G3AX-RBC4001
3G3AX-RBC6001
3G3AX-RBC12001
DC 리액터 (3G3AX-DL[][][][])
Please click image to enlarge (open in a new window).
AC Reactor (3G3AX-AL[][][][])
Please click image to enlarge (open in a new window).
3G3AX-AL2025/AL2055/AL4025/AL4055/AL4110
3G3AX-AL2110/AL2220/AL2330/AL4220/AL4330
Input Noise Filter (3G3AX-NFI[][])
Please click image to enlarge (open in a new window).
3G3AX-NFI21/NFI22
3G3AX-NFI23/NFI24/NFI41/NFI42/NFI43/NFI44
Please click image to enlarge (open in a new window).
3G3AX-NFI25/NFI26/NFI45/NFI46
3G3AX-NFI27
Please click image to enlarge (open in a new window).
Output Noise Filter (3G3AX-NFO[][])
3G3AX-NFO01/NFO02
Please click image to enlarge (open in a new window).
3G3AX-NFO03/NFO04/NFO05
라디오 노이즈 필터 (3G3AX-ZCL[])
3G3AX-ZCL1
3G3AX-ZCL2

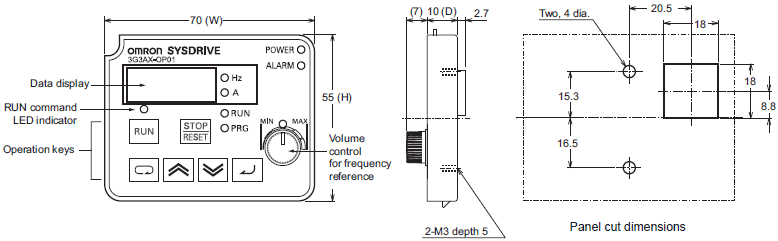

외부 디지털 오퍼레이터 (3G3AX-OP01)
3G3AX-OP01
Please click image to enlarge (open in a new window).
오퍼레이터용 케이블 (3G3AX-OPCN[])
